ALK 511 Kunming DDG-172

Albatros

ALK 511 Kunming DDG-172

$ 59.00

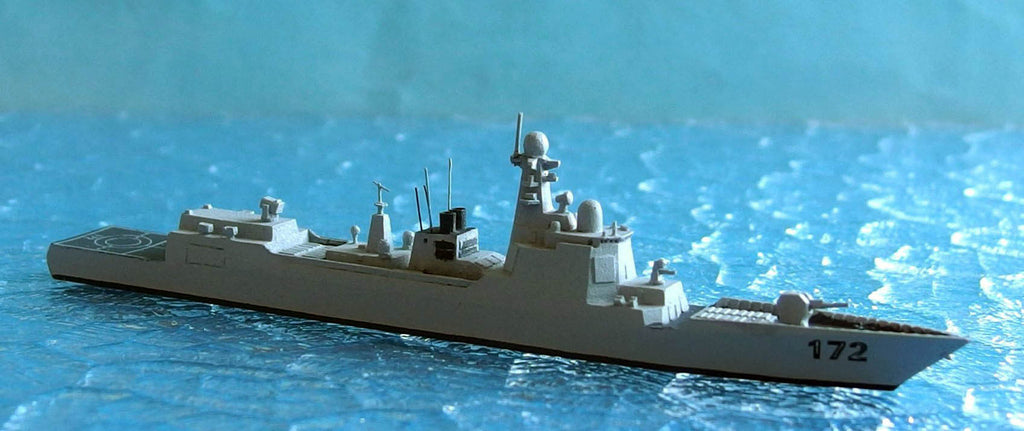

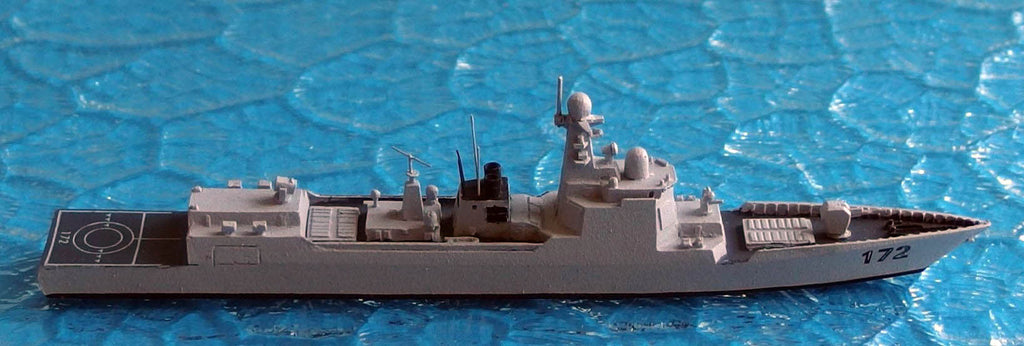

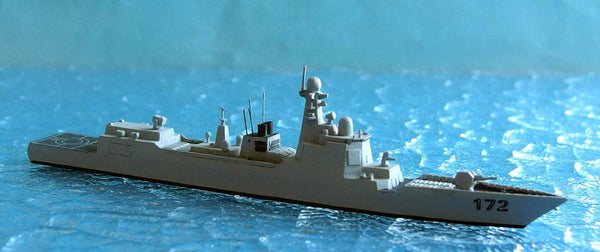

New 1/1250 scale model of the Chinese Type 052D destroyer Kunming DDG-172 by Albatros (ALK 511) as in 2014.

Lead ship of a 13 ship class. Fitted with Chinese Aegis type system and intended to be comparable to the American Arleigh Burke class destroyers.

Tonnage: 7500 tons
Length: 156 m (512 ft)
Beam: 18 m (59 ft)
Draught: 6.5 m (21 ft)
Propulsion:
  • CODOG
  • Two QC-280 gas turbine engines, each generates 28MW and two MTU 20V 956TB92 diesel engines, each generates 6 MW.
Speed: 30 knots
Complement: 280
Sensors and
processing systems:
  • H/LJG-346A multifunction active phased array radar
  • Anti stealth H/LJQ-517B radar with Yagi antenna
  • H/LJQ-364 low altitude and surface search radar
  • H/LJQ-366 other-thee-horizon surface search & targeting radar
  • H/LJP-349 fire control radar for close-in weapon systems
  • H/LJP-344A phased array fire control radar for main gun
  • H/SJD-9 active/passive sonar
Armament:
  • 1 × H/PJ-38 130mm dual purpose gun
  • 64 VLS capable of carrying:
    • CY-5 series ASW missiles
    • CJ-10 LACM
    • YJ-18 or YJ-83 anti-ship missiles
    • HHQ-9 series long range SAM
    • HQ-16 medium range SAM
    • DK-10A (possibly quad-packed) medium range SAM
  • 2 × 30 mm remote controlled gun
  • 1 × H/PJ-12 CIWS or Type 1130 CIWS
  • 1 × HHQ-10 short range SAM in 24-cell launcher
  • 6 torpedo tubes
  • 4 × 18-tube decoy rocket launcher
Aircraft carried: 1 helicopter
Aviation facilities:
  • Stern hangar
  • Helicopter landing platform
